pEGFP-C3荧光蛋白报告载体

Read More
Thumbnail image

载体订购信息

产品编号
GS-1109
产品名称
pEGFP-C3 荧光蛋白报告载体
市场价格
￥ 1000
沟通洽谈

载体基本信息

载体名称:
pEGFP-C3
载体类型:
荧光蛋白报告载体
克隆方法:
/
拷贝类型:
高
载体抗性:
Kanamycin (卡那霉素)
筛选标记:
Neomycin (新霉素)
载体大小:
4727 bp 点击查看完整序列
启动子:
CMV
测序引物5’:
pEGFP-C: 5'-CATGGTCCTGCTGGAGTTCGTG-3'
测序引物3’:
/
报告基因:
/

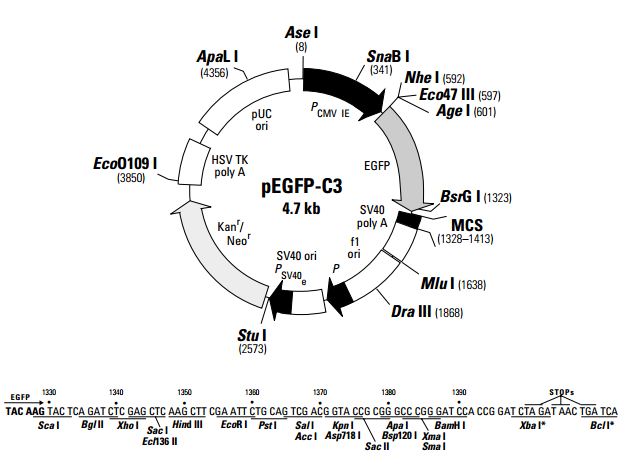

载体图谱展示

载体图谱

载体说明

pEGFP-C3 encodes a red-shifted variant of wild-type GFP (1–3) which has been optimized for brighter fluorescence and higher expression in mammalian cells. (Excitation maximum = 488 nm;emission maximum = 507 nm.) pEGFP-C3 encodes the GFPmut1 variant (4) which contains the double-amino-acid substitution of Phe-64 to Leu and Ser-65 to Thr. The coding sequence of the EGFP gene contains more than 190 silent base changes which correspond to human codon-usage preferences (5). Sequences flanking EGFP have been converted to a Kozak consensus translation initiation site (6) to further increase the translation efficiency in eukaryotic cells. The MCS in pEGFP-C3 is between the EGFP coding sequences and the SV40 poly A. Genes cloned into the MCS will be expressed as fusions to the C terminus of EGFP if they are in the same reading frame as EGFP and there are no intervening stop codons. SV40 poly adenylation signals downstream of the EGFP gene direct proper processing of the 3' end of the EGFP mRNA. The vector backbone also contains an SV40 origin for replication in mammalian cells expressing the SV40 T-antigen. Aneomycin resistance cassette (Neor), consisting of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and poly adenylation signals from the Herpes simplex virus thymidine kinase (HSV TK) gene, allows stably transfected eukaryotic cells to be selected using G418. A bacterial promoter upstream of this cassette expresses kanamycin resistance in E. coli. The pEGFP-C3 backbone also provides a pUC origin of replication for propagation in E. coli and an f1origin for single-stranded DNA production.

载体应用

Fusions to the C terminus of EGFP retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo. The target gene should be cloned into pEGFP-C3 so that it is in frame with the EGFP coding sequences, with no intervening in-frame stop codons. The recombinant EGFP vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected usingG418 (7). pEGFP-C3 can also be used simply to express EGFP in a cell line of interest (e.g., as a transfection marker).
