pLVX-EF1α-IRES-Puro慢病毒载体

Read More
Thumbnail image

载体订购信息

产品编号
GS-2015
产品名称
pLVX-EF1α-IRES-Puro 慢病毒载体
市场价格
￥ 2200
沟通洽谈

载体基本信息

载体名称:
pLVX-EF1α-IRES-Puro
载体类型:
慢病毒载体
克隆方法:
/
拷贝类型:
高
载体抗性:
Ampicillin (氨苄青霉素)
筛选标记:
嘌呤霉素(Puromycin)
载体大小:
8825 bp 点击查看完整序列
启动子:
EF1α/ EF1a
测序引物5’:
EF-1a Forward: TCAAGCCTCAGACAGTGGTTC
测序引物3’:
/
报告基因:
/

载体图谱展示

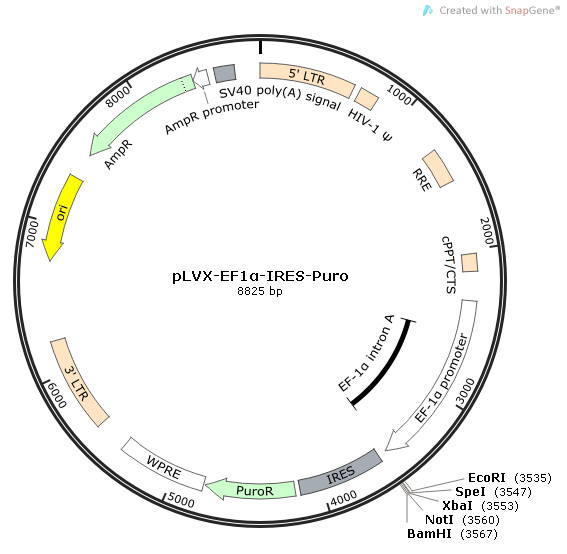

载体图谱

载体说明

pLVX-EF1α-IRES-Puro is an HIV-1-based, lentiviral expression vector designed to simultaneously and constitutively express a protein of interest and puromycin resistance (Puror) from a bicistronic transcript in mammalian cells. Expression of your protein of interest and Puror from a bicistronic transcript allows puromycin resistance to be used as an indicator of transduction efficiency and a marker for selection.

Simultaneous expression of a protein of interest and puromycin resistance is made possible by the presence of an encephalomyocarditis virus internal ribosome entry site (IRES; 1) positioned between the multiple cloning site (MCS) and Puror. The IRES allows a protein of interest and puromycin resistance to be translated from a single bicistronic mRNA. Stable, constitutive expression of the bicistronic transcript is driven by the EF1α promoter (PEF1α), which continues to be constitutively active even after vector integration into the host cell genome (2).

pLVX-EF1α-IRES-Puro contains all of the viral processing elements necessary for the production of replicationincompetent lentivirus, as well as elements to improve viral titer, transgene expression, and overall vector function. The woodchuck hepatitis virus posttranscriptional regulatory element (WPRE) promotes RNA processing events and enhances nuclear export of viral RNA (3), leading to increased viral titers from packaging cells. In addition, the vector includes a Rev-response element (RRE), which further increases viral titers by enhancing the transport of unspliced viral RNA out of the nucleus (4). Finally, pLVX-EF1α-IRES-Puro also contains a central polypurine tract/central termination sequence element (cPPT/CTS). During target cell infection, this element creates a central DNA flap that increases nuclear import of the viral genome, resulting in improved vector integration and more efficient transduction (5). The vector also contains a pUC origin of replication and an E. coli ampicillin resistance gene (Ampr) for propagation and selection in bacteria.
