pMAL-p5E原核表达载体

Read More
Thumbnail image

载体订购信息

产品编号
GS-2057
产品名称
pMAL-p5E 原核表达载体
市场价格
￥ 1000
沟通洽谈

载体基本信息

载体名称:
pMAL-p5E
载体类型:
原核表达载体
克隆方法:
/
拷贝类型:
高
载体抗性:
Ampicillin (氨苄青霉素)
筛选标记:
/
载体大小:
5755 bp 点击查看完整序列
启动子:
Tac
测序引物5’:
/
测序引物3’:
/
报告基因:
/

载体图谱展示

载体图谱载体图谱

载体说明

The vector pMAL-p5E is designed to produce maltose-binding protein (MBP) fusions, where the protein of interest can be cleaved from MBP with the specific protease Enterokinase (NEB #P8070).

MBP fusions made with this vector include an N-terminal signal sequence, so the fusion protein is directed to the periplasm. The MBP has been engineered for tigher binding to amylose resin.

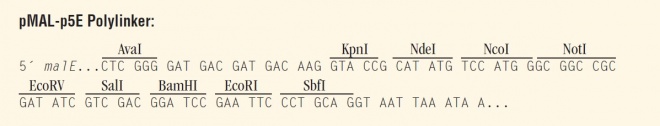

A gene or open reading frame is inserted into a restriction site of the vector polylinker, in the same translational reading frame as the malE gene (encoding MBP). The fusion protein produced from the vector can be purified by amylose affinity chromatography. The sequence coding for the five amino acids Asp-Asp-Asp-Asp-Lys is present just upstream of the KpnI site. This allows the protein of interest to be cleaved from maltose-binding protein with enterokinase.

pMAL-p5E cut with KpnI followed by treatment with the Quick Blunting Kit (NEB #E1201) produces a blunt end at the lysine codon. This allows blunt-end cloning of an insert where the first three nucleotides code for the first amino acid of the protein of interest, and enterokinase cleavage of the fusion produces a protein with no vector-derived amino acids.
